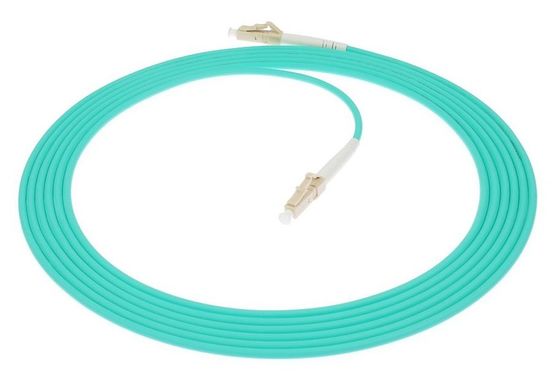

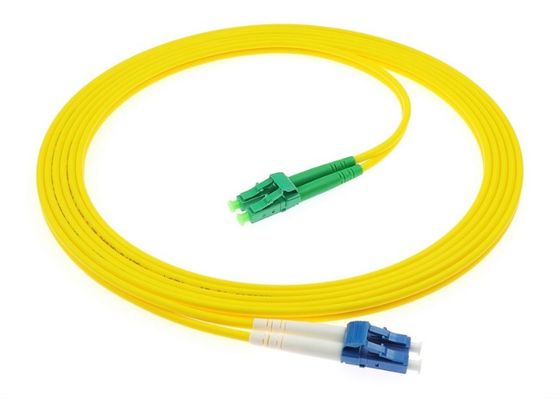

LC-LC Simplex/Duplex SM/MM Fiber Optic Patch Cord
Λεπτομέρειες:
| Τόπος καταγωγής: | Κίνα |
| Μάρκα: | TAKFLY/OEM |
| Πιστοποίηση: | CE,RoHS,EMC |
| Αριθμό μοντέλου: | SM(G652D,G657A1, A2); ΜΜ(OM2/3/4/5) |
| Έγγραφο: | LC-LC Patchcord specificati...EN.pdf |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 1 ΤΕΜ |
|---|---|
| Τιμή: | To be negotiated |
| Συσκευασία λεπτομέρειες: | Κιβώτιο χαρτοκιβωτίων PP bag+ |
| Χρόνος παράδοσης: | 3-15 εργάσιμες ημέρες |
| Όροι πληρωμής: | T/T, Western Union, MoneyGram, PayPal |
| Δυνατότητα προσφοράς: | 200000 τμχ/ μήνα |
|
Λεπτομερής ενημέρωση |
|||
| Τύπος ινών: | SM(G652,G655,G657); MM(OM1-OM5) | Διάμετρος καλωδίου: | 2.0、3.0 ή εξατομικευμένο (simplex/duplex) |
|---|---|---|---|
| Απώλεια εισαγωγής: | ≤0,3dB | Απώλεια επιστροφής: | UPCSM≥50dB、APCSM≥60dB、UPCMM≥35dB |
| Θερμοκρασία λειτουργίας: | -20 ℃ ~ 70 ℃ | Θερμοκρασία αποθήκευσης: | -40 ℃ ~ 80 ℃ |
| Υλικό εξωτερικού περιβλήματος: | PVC, LSZH, TPU | Μήκος: | Προσαρμοσμένο |
| Επισημαίνω: | Telcordia GR-326-CORE Standard Fiber Optic Patch Cord,Simplex/Duplex Fiber Optic Jumper,SM/MM Fiber Optic Cable |
||
Περιγραφή προϊόντων
Fiber optic patch cord is the cable with both ends terminated with fiber optic connectors, which realizes the connection between optic networking equipment and equipment, and equipment and patch cords. Easy operation and convenience make it indispensable as one of the passive products for optic networking construction.
- CATV
- Telecommunication networks
- Active device termination
- Local area networks (LANS)
- Data processing networks
- Test equipment
- Wide area networks (WANS)
- Low insertion loss and High reflection loss
- Good exchange ability
- Good durability
- High temperature stability
- Standard: Telcordia GR-326-CORE
- Connector type : SC / FC / LC / ST / MPO / MTP / MU / MTRJ / E2000 / SMA
- Mode type : single mode ( UPC and APC ) / multi mode ( PC )
- Cable diameter : 0.9 / 2.0 / 3.0 mm ( can customized other diameter )
- Coating material : PVC / LSZH
- fiber count : simple / duplex / 4 core / 6core / 8 core /12 core / 24core/48 core / 96 core and so on
- Cable type : G652D / G657A1 / G657A2 /G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 /OM5
- Patch cord length : according to your requirement
- Founded in 2000, Located in Shenzhen (south of China neighbor Hongkong)
- FTTH, DATA Center Solution, One-stop fiber optic components supply
- ISO 9001/14001/RoHS/CE/FCC certified quality
- Factory-direct pricing & strict quality control
- Customized production & on-time delivery
- 25 years' expertise + 30 engineers' R&D support
- Accept trial/small orders
- Main customer: Vodafone, Orange, Telefornica, Movistar, Ericsson, etc.
- Wordwide exhibitions: OFC, CommunicAsia, ECOC, Netcom, Cable Tech, Network X, SVIAZ ICT, AFRICACOM, CAIRO ICT, etc.
- 3-7 days for samples; 2-3 weeks for bulk (urgent orders supported)
- 100% pre-shipment testing
- Prompt response & full after-sales support
A: Yes, we are a manufacturer, FTTH solution and data center total solution provider in Shenzhen, China, established in 2000.
A: MOQ can be 1 pcs, but the price is not competitive. More quantity, the price will be more competitive.
A: Yes. We can delivery by air, DHL, TNT, UPC, FEDEX, etc. For big quantity we will deliver it by sea. We can quote price with freight and lead time for you, after you let us know detailed requirements with quantity. We have competitive shipping forwarders. For more solutions, you can feel free to contact us.
A: Our production is according to IEC, Europe standard. CE, ISO, RoHS, CPR, and ANATEL certified. All the products are 100% test before delivery.
A: It depends on the quantity and products. For fiber optic patch cord, the lead time can be 2-3 working days within 5000 pcs. We keep the regular products in stock. Also, we can deal with urgent orders.
A: Depends on different product, we have 1 year warranty for patch cord since delivery, but only responsible for non-artificial damage. For artificial damage, we can repair it for you for free, freight will be paid by your side.
A: International export standard package. If you need to print your logo on the packing, please let us know before we quote.
A: Yes, we can. All products accept OEM/ODM. We can sign the Confidentiality Agreement.
A: It depends on which products, Free sample provide under 10 usd. Freight will be paid by buyer before delivery.
A: 1. Send mail or inquiries with product name, specification, and quantity to us. Provide your receive address if you need FOB, CIF, CFR price.
2. We will offer our quotation with lead time.
3. After the quotation confirmed, we will send a PI with our bank account.
4. Production will be arranged after the payment received.
5. Confirm the consignee with you before we deliver it.
6. The tracking number will be provided after the delivery.
A: T/T, Western Union, Paypal, MoneyGram at once. For big amounts, can be 50% deposit in advance, 50% balance paid before delivery.
