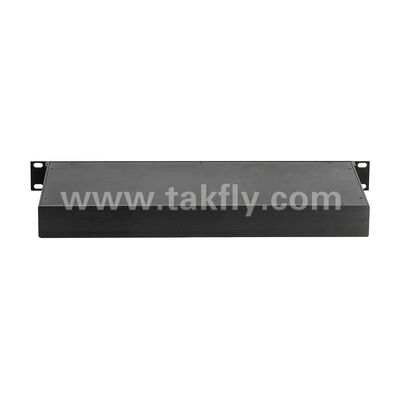

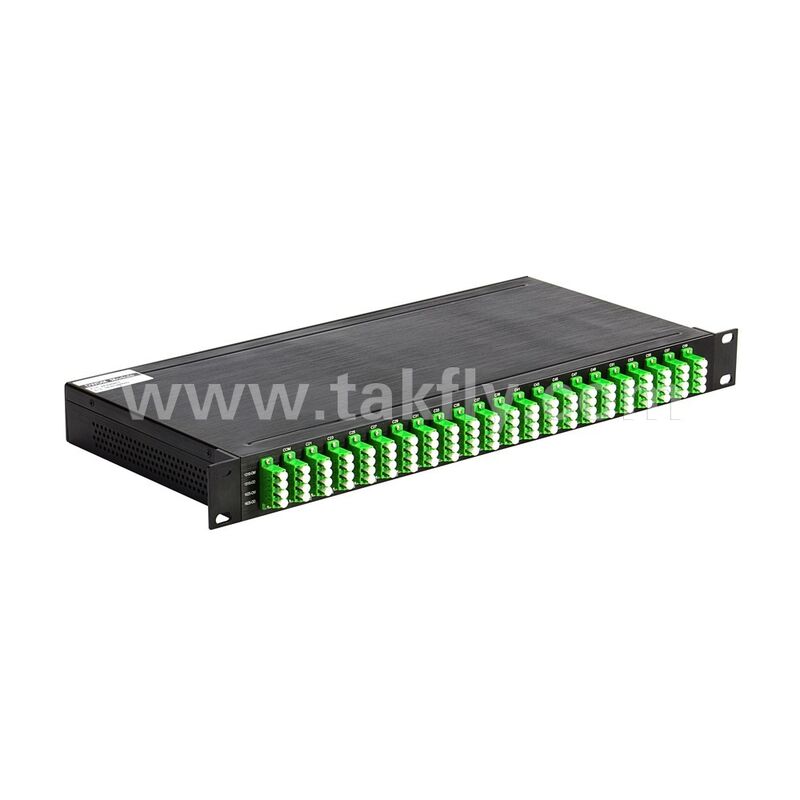

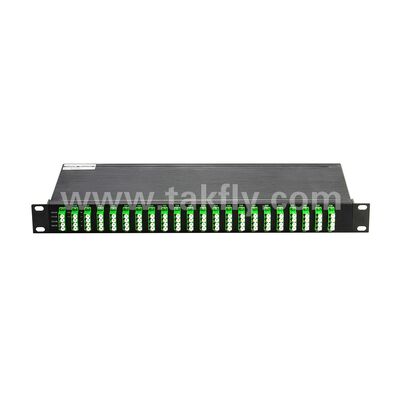

Fiber Optic DWDM 100GHz AWG 40CH MUX+DEMUX for Data Center Telecom 5G
Λεπτομέρειες:
| Τόπος καταγωγής: | Κίνα |
| Μάρκα: | OEM |
| Πιστοποίηση: | ISO, CE RoHS |
| Αριθμό μοντέλου: | DF-DWDM-100GHz |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 1 |
|---|---|
| Τιμή: | USD500/pc |
| Συσκευασία λεπτομέρειες: | ΧΑΡΤΟΚΙΒΩΤΙΟ |
| Χρόνος παράδοσης: | 5-8 εργάσιμες |
| Όροι πληρωμής: | T/T, Western Union |
| Δυνατότητα προσφοράς: | 50000 τμχ το μήνα |
|
Λεπτομερής ενημέρωση |
|||
| Προσαρμογή: | Ναί | ||
|---|---|---|---|
| Επισημαίνω: | Fiber Optic DWDM 100GHz MUX DEMUX,40CH AWG MUX DEMUX for telecom,DWDM MUX DEMUX for data center |
||
Περιγραφή προϊόντων
Fiber Optic DWDM 100GHz AWG 40CH MUX+DEMUX for Data Center Telecom 5G
100GHz AWG 40CH DWDM MUX+DEMUX
Takfly's DWDM 1U-19inch rack utilizes wavelength division multiplexing technology based on TFF (Thin Film Filter), with multiple wavelength options. This system multiplexes optical signals of different wavelengths into a single fiber for transmission and uses demultiplexing at the receiving end to separate the combined signals back into individual wavelengths.
DWDM systems feature channel spacing of 100GHz, 200GHz, and other configurations, making them ideal for long-distance, high-capacity trunk networks and ultra-large capacity metropolitan area network core nodes.
Key Features
- Low Insertion Loss
- Wide Pass Band
- High Channel Isolation
- High Stability and Reliability
Applications
- Telecommunications 5G Networks
- Metropolitan Area Network Backbone Networks
- Data Centers
Technical Specifications
| Parameter | 4 Channel | 8 Channel | 16 Channel |
|---|---|---|---|
| Mux | Demux | Mux | Demux | Mux | Demux | |
| Channel Wavelength (nm) | ITU 100 GHz Grid + 1270-1350 | ||
| Center Wavelength Accuracy (nm) | ±0.05 | ||
| Channel Spacing (GHz) | 100 | ||
| Channel Passband (@-0.5dB bandwidth) (nm) | ≥0.22 | ||
| Insertion Loss | ≤1.6 | ≤2.5 | ≤3.5 |
| Channel Uniformity | ≤0.6 | ≤1.0 | ≤1.5 |
| Channel Ripple | 0.3 | 0.3 | 0.3 |
| Isolation Adjacent | N/A | >30 | N/A |
| Isolation Non-adjacent | N/A | >40 | N/A |
| Insertion Loss Temperature Sensitivity (dB/℃) | ≤0.005 | ||
| Wavelength Temperature Shifting (℃) | <0.002 | ||
| Polarization Dependent Loss (dB) | <0.1 | ||
| Polarization Mode Dispersion (PS) | <0.1 | ||
| Directivity (dB) | >50 | ||
| Return Loss (dB) | >45 | ||
| Maximum Power Handling (mW) | 500 | ||
| Operating Temperature (℃) | -5 to +75 | ||
| Storage Temperature (℃) | -40 to +85 | ||
Package Dimensions
- L100×W80×H10 mm (2CH-8CH Module)
- L140×W100×H15 mm (9CH-18CH Module)
- 19" 1U Rack
- LGX
