RoHS Compliant LSZH Sheath Single Mode Simplex LC-FC Fiber Optic Patchcord with YD-T826/1996 YD/T895 YD/T896 Standards
Σύνοψη του προϊόντος
RoHS Compliant SM Simplex LSZH LC-FC Fiber Optic Patchcord Fiber Optic Patch Cords are designed to interconnect or cross connect fiber networks within structured cabling systems. Typical fiber connector interfaces are SC, ST, FC, MU, MTRJ, E2000 and LC in either multimode or single-mode applications...
Product Custom Attributes
Δομή σύνδεσης:
FC-LC
Υλικό σχήμα:
Στρογγυλό σύρμα
Επιτρέπεται η πλευρική πίεση:
100 (n/100mm)
Επιτρεπόμενη αντοχή εφελκυσμού:
<100n
Πυρήνας:
Μοναδικός πυρήνας
Υλικό θήκης:
LSZH
Τύπος ίνας:
G652D, G655, G657
Στίλβωμα:
PC, UPC, APC
Αριθμός πυρήνα:
Simplex, Duplex, Qurd
Θερμοκρασία λειτουργίας:
-40C ~+80C
Μήκος καλωδίου:
1m, 3m, 5m ή Προσαρμοσμένο
Λειτουργία ινών:
Μεμονωμένη λειτουργία ή πολλαπλών λειτουργιών
Διάμετρος καλωδίου:
0.9mm, 2.0mm, 3.0mm
Λειτουργία μήκους κύματος:
1310/1550nm
Απώλεια εισαγωγής:
≤ 0,3 DB
Επισημαίνω:
RoHS Compliant Fiber Optic Patchcord
,LSZH Sheath Fiber Optic Patch Cable
,Single Mode LC-FC Fiber Optic Jumper
Βασικές ιδιότητες
Πιστοποίηση:
RoHS, CE, ISO9001, VDE, CCC
Εμπορικά Ακίνητα
Ποσότητα παραγγελίας min:
10
Τιμή:
0.99
Περιγραφή προϊόντων
RoHS Compliant SM Simplex LSZH LC-FC Fiber Optic Patchcord
Fiber Optic Patch Cords are designed to interconnect or cross connect fiber networks within structured cabling systems. Typical fiber connector interfaces are SC, ST, FC, MU, MTRJ, E2000 and LC in either multimode or single-mode applications.
- All connectors have precision pre-radiused zirconia ferrules
- ST and FC connectors have metal bodies
- Corning, YOFC, OFS fiber is standard
- Standard and custom configurations available
- Duplex clips included with duplex configurations
Key Features
- Comply with IEC and YD-T826/1996, NTT, YD/T826, YD/T895, YD/T896, RoHS Standard
- Connector type standard: IEC61574 series
- Low Insertion Loss: IEC 61300-3-4, IL≤0.20dB
- High Return Loss: IEC61300-3-6; RL≥60dB
- Flammability: IEC60332-1
- Excellent repeat plug feature and interchangeability
- Ceramic Ferrule with high-density docking, concentricity ≤0.5
- Available with general PVC or LSZH cable
Applications
- Telecommunications
- CATV, LAN, MAN, WAN, Test & Measurement
- Medical
Technical Specifications
| Parameter | Specification |
|---|---|
| End face type | PC, UPC and APC |
| Fiber type | SM(G652,G655,G657); MM(OM1-OM5) |
| Cable Diameter | 2.0, 3.0 or customized (Simplex/duplex) |
| Insertion loss | ≤ 0.3 dB |
| Return loss | UPC SM≥50dB, APC SM≥60 dB, PC MM≥35 dB |
| Repeatability | ≤ 0.1 |
| Durability | ≤ 0.2dB |
| Interchangeability | ≤ 0.2dB |
| Tensile strength | >70N |
| Operating Temperature | -20ºC~70ºC |
| Storage Temperature | -40ºC~80ºC |
| Outer Sheath Material | PVC, LSZH, PU |
| Bending radius (Static/Dynamic) | 10D/20D |
| Length | Customized |

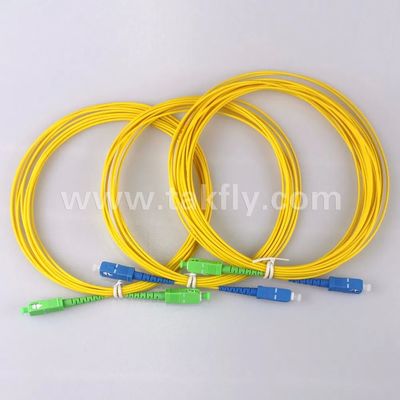

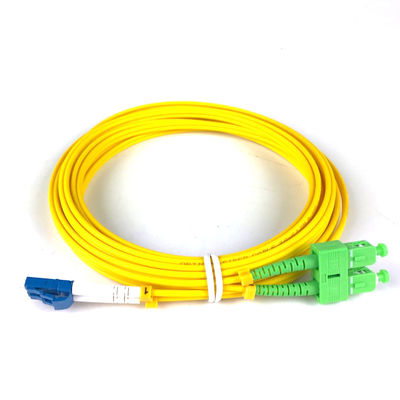

Product Images
Why Choose TAKFLY
Professional Manufacturer Advantages
- 18+ years manufacturing experience in Fiber optic products - one stop purchasing
- 450+ assembly workers with 3+ years experience
- 26+ R&D Engineers
- 16 Sets Germany imported Injection Machines and 10+ Cable Production Lines
- 30+ sets of Testing Machines: OTDR, 3D, VFL, IL&RL test instruments, tension strength tester, crush resistance tester, power meter tester, light checker, etc.
- OEM Brand accepted
- Exhibitions: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
- 24/7 after-sales service available
Quality Control Process
- Spot check raw material incoming inspection before production
- Full check after every individual process
- Full check production half done
- Full check finished products before packing
- Spot check before shipping
Delivery & Shipping
- Samples: 1-3 working days
- Mass Production: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet available
- Shipping Methods: DHL, UPS, FEDEX, TNT, EMS (3-5 days), Sea or Air freight
Payment Terms
T/T, Paypal, Western Union and L/C accepted. Price negotiable for large quantities.
