100GHz Dense Wavelength Division Multiplexer
Λεπτομέρειες:
| Τόπος καταγωγής: | Κίνα, Shenzhen |
| Μάρκα: | DF/OEM/Nuetral |
| Πιστοποίηση: | CE/ROHS/REACH/ISO9001/ISO14001 |
| Αριθμό μοντέλου: | Πολλαπλέξερ διαίρεσης πυκνού μήκους κύματος 100GHz |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | Διαπραγματεύσιμος |
|---|---|
| Τιμή: | negotiable denpend on QTY |
| Συσκευασία λεπτομέρειες: | Κουτί κυψέλης + χαρτοκιβώτιο |
| Χρόνος παράδοσης: | 5-9 εργάσιμες ημέρες |
| Όροι πληρωμής: | Western Union, T/T, MoneyGram/Paypal |
| Δυνατότητα προσφοράς: | 1000pcs/ημέρα |
|
Λεπτομερής ενημέρωση |
|||
| Όνομα προϊόντος: | Πολλαπλέξερ διαίρεσης πυκνού μήκους κύματος 100GHz | Λειτουργικό μήκος κύματος (nm): | Πλέγμα ITU 100 GHz |
|---|---|---|---|
| Ακρίβεια κεντρικού μήκους κύματος (nm): | ± 0,05 | Διάστημα καναλιών (GHz) GHz): | 100 |
| Εισάγω απώλεια: | ≤1,6 ≤2,5 ≤3,5 | Απομόνωση (DB): | > 30 |
| Επιστροφής απώλεια (DB): | >45 | Κατευθυντικότητα (dB): | > 50 |
| Θερμοκρασία λειτουργίας: | -5~+75 | Μέγιστη ισχύς χειρισμού (mW): | 500 |
| Μέγεθος συσκευασίας (mm): | L140xW100xH15(9CH~18CH Module) 、19 1U Rack | Εγγύηση: | 1 έτος, συντήρηση εφ' όρου ζωής |
| Μάρκα ινών: | Η Corning, η YOFC, η OFS, η Draka | ||
| Επισημαίνω: | 100GHz DWDM fiber optic multiplexer,dense wavelength division multiplexer with warranty,fiber optic patchcord DWDM module |
||
Περιγραφή προϊόντων
100GHz Dense Wavelength Division Multiplexer
Applications
- Channel Add/Drop
- DWDM Network
- Fiber Optical Amplifier
Key Features
- Low Insertion Loss
- Wide Pass Band
- High Channel Isolation
- High Stability and Reliability
Technical Specifications
| Parameter | 4 Channel | 8 Channel | 16 Channel |
|---|---|---|---|
| Channel Wavelength(nm) | ITU 100 GHz Grid | ||
| Center wavelength Accuracy(nm) | ±0.05 | ||
| Channel Spacing (GHz) | 100 | ||
| Channel Passband (@-0.5dB bandwidth) (nm) | ≥0.22 | ||
| Insertion Loss | ≤1.6 | ≤2.5 | ≤3.5 |
| Channel Uniformity | ≤0.6 | ≤1.0 | ≤1.5 |
| Channel Ripple | 0.3 | 0.3 | 0.3 |
| Isolation - Adjacent | N/A | >30 | >30 |
| Isolation - Non-adjacent | N/A | >40 | >40 |
| Insertion Loss Temperature Sensitivity (dB/℃) | ≤0.005 | ||
| Wavelength Temperature Shifting(℃) | <0.002 | ||
| Polarization Dependent Loss(dB) | <0.1 | ||
| Polarization Mode Dispersion(PS) | <0.1 | ||
| Directivity(dB) | >50 | ||
| Return Loss(dB) | >45 | ||
| Maximum Power Handling(mW) | 500 | ||
| Operating Temperature(℃) | -5~+75 | ||
| Storage Temperature(℃) | -40~85 | ||
Above specifications are for device without connector.
Product Information
| Configuration | Channel No. | Channel | Pigtail Type | Fiber length | Dimension (mm) | Connector |
|---|---|---|---|---|---|---|
| M=Mux D=Demux | 04=4 Channel 08=8 Channel 16=16 Channel N=N Channel |
C20=1561.42nm C21=1560.61nm |
0=250um 1=900um 2=2.0mm 3=3.0mm |
1=1m 2=1.5m 3=others |
1=L100xW80xH10 2=L140xW100xH15 3=19 1U Rack |
0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=others |

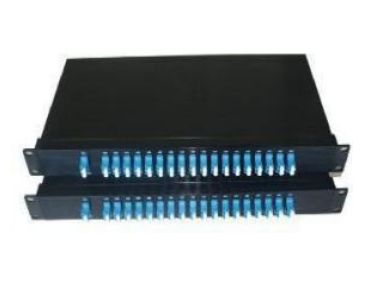

Product Images
Why Choose TAKFLY
- 25+ years of manufacturing experience in fiber optic products
- 450+ assembly workers with 3+ years of experience
- 10+ R&D Engineers dedicated to innovation
- 16 Germany-imported Injection Machines and production lines
- 30+ testing machines including OTDR, 3D, VFL, IL&RL test instruments
- Comprehensive testing equipment: tension strength testers, crush resistance testers, power meter testers, light checkers
- OEM branding accepted
- Global exhibition participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition
Quality Control
- Raw material spot checking before production
- Full inspection after every individual process
- Comprehensive half-done production checks
- Complete finished product inspection before packing
- Pre-shipping spot checks
Delivery Information
- Samples: 1-3 working days
- Mass Production Orders: 3-7 working days
- Packaging: Plastic bags, cartons, and pallets available per request
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
Shipping charges depend on your shipment size and shipping method. We will provide charges upon request.
Q4: Can I visit you?
Certainly! Our factory is located in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is quality problem when we get the goods?
If you encounter quality issues upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, along with implementing quality improvements for future production.
Q6: What is your terms of packing?
We typically pack goods in blister boxes and cartons, but can accommodate custom packaging requests from customers.
Q7: What is your terms of payment?
T/T 30% as deposit, and 70% balance before delivery. We provide photos of products and packaging before final payment.
Q8: What is your terms of delivery?
EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
Generally 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
Q10: Can you produce according to the samples?
Yes, we can manufacture products based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
