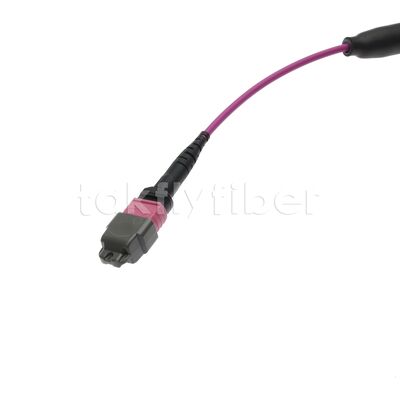

100G CPR B2ca OFNP OM4 USCONEC MTP Elite 8 Fiber MPO Fiber Optic Breakout Cable
Λεπτομέρειες:
| Τόπος καταγωγής: | Shenzhen, Κίνα |
| Μάρκα: | Neutral/OEM/Takfly |
| Πιστοποίηση: | CE/ROHS/REACH/CPR/ISO9001/ISO14001 |
| Αριθμό μοντέλου: | TK-PC-MTP4LC4-0300 |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 1 |
|---|---|
| Τιμή: | US$9.99~US$20.99/PC |
| Συσκευασία λεπτομέρειες: | Τσάντα PE |
| Χρόνος παράδοσης: | 3-7 Εργάσιμες Ημέρες |
| Όροι πληρωμής: | Western Union, L/C, T/T, Paypal |
| Δυνατότητα προσφοράς: | 5000pcs/ημέρα |
|
Λεπτομερής ενημέρωση |
|||
| Πυρήνας: | 8 | Τύπος ινών: | ΜΜ OM4 |
|---|---|---|---|
| Μήκος: | 0,5M/1M/5M/10M/50M/100M ή προσαρμοσμένο | Διάμετρος καλωδίου: | 3,0 χλστ |
| Τύπος σύνδεσης: | MPO/MTP, APC/PC, Άνδρας/Γυναίκα | Απώλεια εισαγωγής: | Τυπικό: 0,7dB, Χαμηλή απώλεια: 0,35dB |
| Απώλεια επιστροφής: | MM PC: 20dB | Καλώδιο: | LSZH |
| Χρώμα καλωδίου: | Βιολετί/Ματζέντα | Εφαρμογή: | Κέντρο δεδομένων, Τηλεπικοινωνίες, Δίκτυο |
| Πιστοποίηση: | CE, ROHS, REACH, CPR, ISO9001, ISO14001 | ||
| Επισημαίνω: | 100G OM4 MTP breakout cable,CPR B2ca OFNP fiber optic cable,USCONEC MTP Elite 8 fiber cable |
||
Περιγραφή προϊόντων
100G CPR B2ca OFNP OM4 USCONEC MTP Elite 8 Fiber MPO Fiber Optic Breakout Cable
100G CPR B2ca OFNP OM4 USCONEC MTP Elite 8 Fiber MPO Fiber Optic Breakout Cable

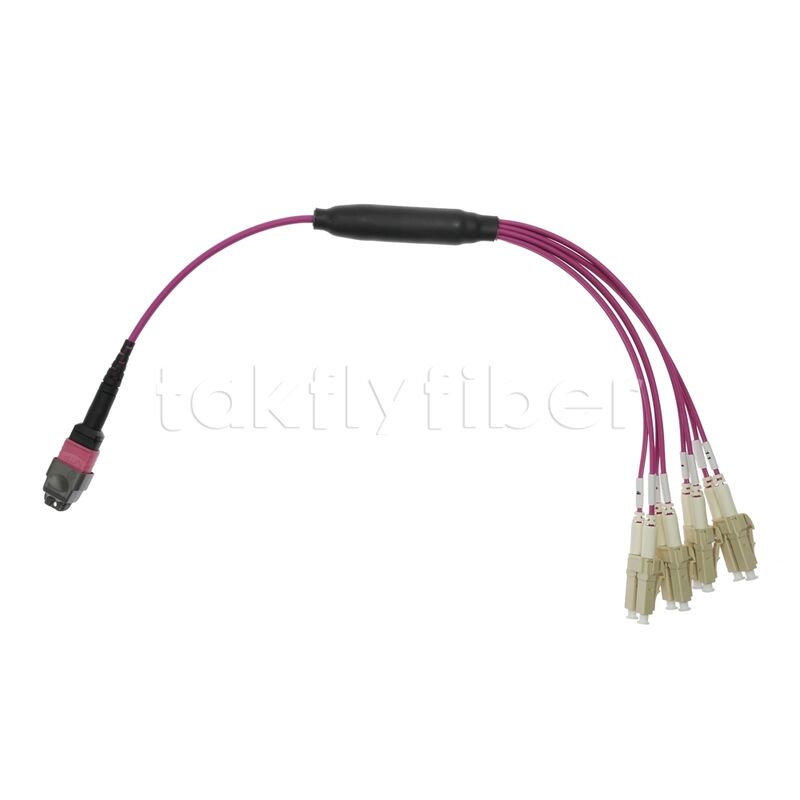

Takfly 8 Fiber MTP®/MPO to LC Breakout Cable: OM4 MPO to 4xLC Duplex fiber breakout assembly.
QSFP MPO/MTP multi-fiber, OFNP Plenum Rated, high density connection distributes to 8 Simplex LC fiber connectors, each with 2.0mm OD, aqua colored jacket. Ceramic ferrule LC fiber optic connectors terminated to Corning OM4 50/125, Laser-Optimized Multimode Fiber (LOMMF), 100Gb Rated Fiber Cores.
Takfly 8 Fiber MTP®/MPO to LC Breakout Cable: OM4 MPO to 4xLC Duplex fiber breakout assembly.
QSFP MPO/MTP multi-fiber, OFNP Plenum Rated, high density connection distributes to 8 Simplex LC fiber connectors, each with 2.0mm OD, aqua colored jacket. Ceramic ferrule LC fiber optic connectors terminated to Corning OM4 50/125, Laser-Optimized Multimode Fiber (LOMMF), 100Gb Rated Fiber Cores.
MPO Fiber Optic Patch Cable Features
- High Density - multifiber connector and compact dimension of ruggedized micro cable ease space in costly data center environments
- Rapid Deployment - factory terminated modular system saves installation and reconfiguration time during moves, adds and changes
- Reliability - 100% tested combination of high quality components and manufacturing quality control guarantees product to the highest standards
- Next Generation Network Proof - emerging high speed protocol are going to use MTP/MPO interface - your cabling infrastructure remains unchanged
- Compact design, up to 4, 8, 12, 24 fibers
Certifications: CE, ROHS, REACH, CPR, ISO9001 and ISO14001.
MPO Fiber Optic Patch Cable Specifications
| Item | LC / SC / ST / FC | MPO / MTP |
|---|---|---|
| End face type | PC / UPC / APC | PC and APC |
| Fiber type | SM(G652 / G655 / G657); MM(OM1-OM5) | |
| Core number | 2 / 4 / 6 / 8 / 12 / 24 | |
| Cable Diameter | 0.9 / 2.0 / 3.0 | Mini Round cable: Max 4.5mm; Ribbon cable: Max 3.0*5.0mm |
| Insertion loss(dB) | ≤ 0.3 | Standard: ≤0.35/0.7(Typical/Max) Low Loss: ≤0.2/0.35(Typical/Max) |
| Return loss(Min) | UPC SM:40dB APC SM:60 dB PC MM:25 dB | SM: APC:60dB | MM: PC:20dB |
| Test Wavelength(nm) | SM:1310/1550 MM:850/1300 | |
| Repeatability | ≤ 0.1dB | |
| Durability | ≤ 0.2dB | |
| Interchangeability | ≤ 0.2dB | |
| Operating Temperature | -20℃~70℃ | |
| Storage Temperature | -40℃~80℃ | |
| Outer Sheath Material | LSZH/OFNP | |
| Bending radius(Static/Dynamic) | 10D/20D | |
| Length | Customized | |
Applications
- Asynchronous Transmission Mode (ATM)
- Gigabit Ethernet
- Active Devices/Transceiver Interface
- CATV, Video and Multimedia
- Premise Installations
- Telecommunication Networks
- Parallel optical interconnect between PC Cards and patch panels
- Interconnection for O/E modules
- Industrial & Military
- Optical Switch interframe connections
Why Choose TAKFLY - Manufacturing Advantages
Professional Manufacturer:
- Over 21 years manufacturing experience in fiber optic products
- More than 450 assembly workers with 3+ years experience
- 36+ R&D Engineers
- 16 sets of Germany imported Injection Machines and 16 Production Lines
- 30+ sets of Testing Machines: OTDR, 3D, VFL, IL&RL test instruments; tension strength tester, crush resistance tester, power meter tester, light checker, etc.
- OEM Brand accepted
- Global Exhibition Participation: OFC, ECOC, CommunicAsia, NETCOM, AFRICACOM, SVIAZ ICT, CommunicIndonesia, Global Source Electronic Exhibition, etc.
Quality Control
- Spot check raw material incoming inspection before production
- Full check after every individual process completed
- Full check of production half-done items
- Full check of finished products before packing
- Spot check before shipping
Delivery & Shipping
- Samples: 1-3 working days
- Mass Production Orders: 3-7 working days
- Packaging: Plastic Bag, Carton and Pallet available according to request
- Shipping: DHL, UPS, FEDEX, TNT, EMS (3-5 working days)
- Sea or Air freight available with your preferred forwarder or our partnered one
Payment Terms
T/T, Paypal, Western Union and L/C accepted.
Pricing
Competitive pricing with negotiation available for large quantity orders.
Professional Service Commitment:
With over 10 years of experience in this field, we provide excellent service and professional technical support.
Contact us today for product inquiries or technical questions!
With over 10 years of experience in this field, we provide excellent service and professional technical support.
Contact us today for product inquiries or technical questions!
