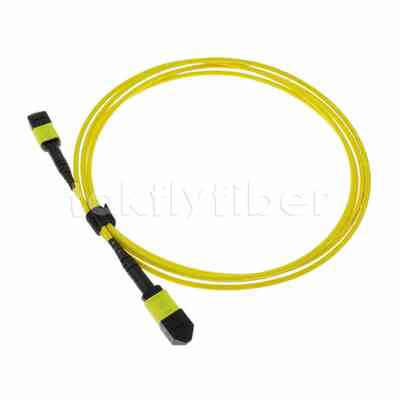

Plenum (OFNP) 0.35dB Max Type B MPO Male to MPO Female Fiber Patch Cable
Λεπτομέρειες:
| Place of Origin: | Shenzhen, China |
| Μάρκα: | Neutral/OEM/Takfly |
| Πιστοποίηση: | CE/ROHS/REACH/CPR/ISO9001/ISO14001 |
| Model Number: | TK-PC-MPO-12/24F-OS2 |
Πληρωμής & Αποστολής Όροι:
| Minimum Order Quantity: | 1 |
|---|---|
| Τιμή: | US$0.01~US$25.99/PC |
| Packaging Details: | PE bag |
| Delivery Time: | 3-7working days |
| Payment Terms: | Western Union, L/C, T/T,Paypal |
| Supply Ability: | 500PCS/Day |
|
Λεπτομερής ενημέρωση |
|||
| Cores: | 12/24 | Fiber Type: | SM SM G657A1/G657A2 |
|---|---|---|---|
| Length: | 1M/5M/15M or customized | Cable Diameter: | 3.0mm |
| Connector Type: | MPO/MTP | Insertion Loss: | Low loss: 0.35dB |
| Return Loss: | SM APC: 60dB | Cable Jacket: | LSZH/OFNP |
| Cable Color: | Yellow | Application: | Data Center, Telecom, Network |
| Πιστοποίηση: | CE, ROHS, REACH, CPR, ISO9001, ISO14001 | Product Name: | Plenum (OFNP) 0.35dB Max Type B MPO Male to MPO Female Fiber Patch Cable |
| Επισημαίνω: | Plenum OFNP MPO fiber patch cable,MPO Male to Female patch cable,0.35dB MPO fiber optic cable |
||
Περιγραφή προϊόντων

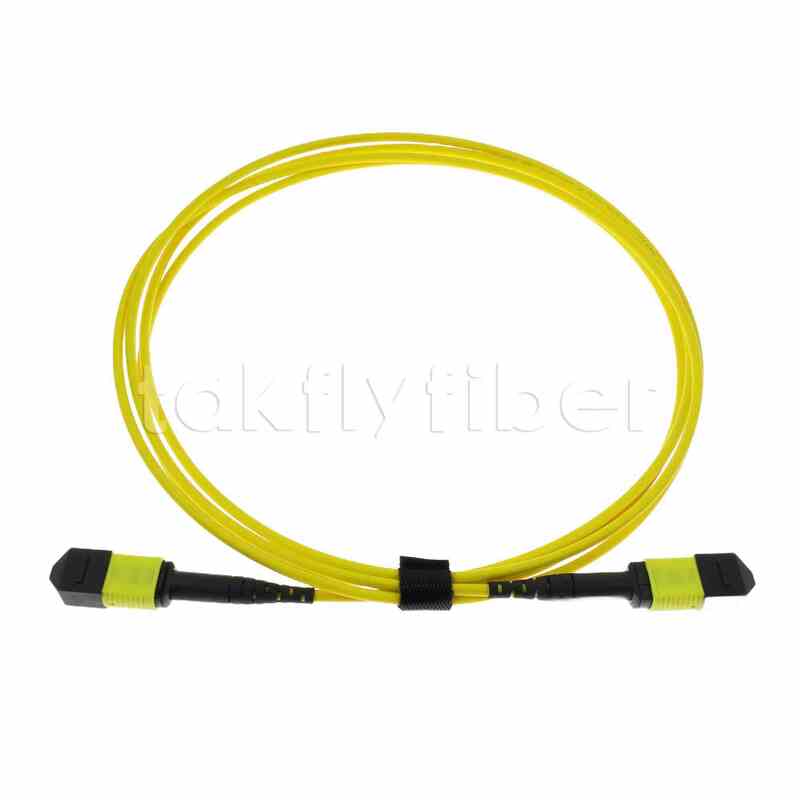

Plenum (OFNP) 0.35dB Max Type B MPO Male to MPO Female Fiber Patch Cable
Takfly's MTP/MPO cable has 8/12/24 cores for 40G/100G applications. The latest 16-fiber cable is designed for short-range 400G cabling in hyperscale data centers.
An 8-MTP/MPO cable system is more cost-effective since it can transfer data at the same pace as a 12-fiber line with less money and insertion loss.
The 12-fiber MTP/MPO cable was the first and most widely used 10G-40G, 40G-100G connection option. Four fibers will remain idle if employed in a 40G QSFP+ or 100G QSFP 28 transceiver, leading in poor fiber utilization.
24-fiber MTP/MPO cables are utilized to build a 100 GBASE-SR 10 link between CFP and CFP transceivers.
16-fiber MTP/MPO cables aggregate numerous 8-fiber parallel transceivers and couple directly to16-fiber parallel fiber links, such as 400G QSFP-DD and OSFP.
MPO Fiber Optic Patch Cable Features
- High Density - multifibre connector and compact dimension of ruggedised micro cable ease space in costly data centre environments
- Rapid Deployment - factory terminated modular system saves installation and reconfiguration time during moves, adds and changes
- Reliability - 100% tested - combination of high quality components and manufacturing quality control guarantees product to the highest standards
- Next Generation Network Proof - emerging high speed protocol are going to use MTP/MPO interface - your cabling infrastructure remains unchanged
- Compact design, up to 4,8,12,24 fibers
MPO Fiber Optic Patch Cable Specifications
| Item | LC / SC / ST / FC | MPO / MTP |
|---|---|---|
| End face type | PC / UPC / APC | PC and APC |
| Fiber type | SM(G652 / G655 / G657)；MM(OM1-OM5) | |
| Core number | 2 / 4 / 6 / 8 / 12 / 24 | |
| Cable Diameter | 0.9 / 2.0 / 3.0 | Mini Round cable: Max 4.5mm； Ribbon cable: Max 3.0*5.0mm |
| Insertion loss(dB) | ≤ 0.3 | Standard: ≤0.35/0.7(Typical/Max) Low Loss: ≤0.2/0.35(Typical/Max) |
| Return loss(Min) | UPC SM:40dB APC SM:60 dB PC MM:25 dB | SM: APC:60dB | MM: PC:20dB |
| Test Wavelength(nm) | SM:1310/1550 MM:850/1300 | |
| Repeatability | ≤ 0.1dB | |
| Durability | ≤ 0.2dB | |
| Interchangeability | ≤ 0.2dB | |
| Operating Temperature | -20℃~70℃ | |
| Storage Temperature | -40℃~80℃ | |
| Outer Sheath Material | OFNP/LSZH | |
| Bending radius(Static/Dynamic) | 10D/20D | |
| Length | Customized | |
MPO Fiber Optic Patch Cable Applications
- Asynchronous Transmission Mode (ATM)
- Gigabit Ethernet
- Active Devices/Transceiver Interface
- CATV, Video and Multimedia
- Premise Installations
- Telecommunication Networks
- Parallel optical interconnect between PC Cards and patch panels
- Interconnection for O/E modules
- Industrial & Military
- Optical Switch interframe connections
Frequently Asked Questions
Are MPO and MTP interchangeable?
MPO is a fiber optic connector - MPO standing for "Multi-fiber Push On" which was originally developed and licensed by NTT Group. Licensing led to several variants of MPO, and MTP®, meaning "Multi-Fiber Termination Push-on" and trademarked by US Conec for their MPO connector, provided some added functionality over MPO in the early years of development. However, over the years the divergence between the two types of connectors has narrowed, with many MPO connectors now offer the same performance and even additional features over MTP. MPO and MTP connectors are 100% compatible and interchangeable. MPO and MTP connectors both conform to SNAP (form factor and multiplex push-pull coupling) and are fully compliant with IEC-61754-7 and TIA-604-5 (FOC155).
Is MTP better than MPO?
The distinction between MTP (Multi-Fiber Termination Push-On) and MPO (Multi-Fiber Push-On) lies in the trademark. Functionally, both MTP and MPO connectors serve the same purpose, offering high-density multi-fiber connectivity. The choice between them depends on the application requirements, cost considerations, and adherence to specific standards. In practice, people often use the terms interchangeably, but it's essential to understand the specific context and whether adherence to US Conec's standards is necessary for the given application.
How should I choose between MPO and MTP?
In essence, the choice between MTP and MPO depends on the specific requirements of the connection scenario. MTP and MPO have their own advantages depending on the specific needs of the application. MPO connectors have a wider availability and may be more cost-effective on some projects. MTP can better meet the requirements for high performance and high reliability, but it will also be relatively more expensive. Besides, don't forget to ensure compatibility with existing infrastructure and check the availability of connectors from your preferred supplier.
Can MPO/MTP patch cords be customized for specific applications?
Yes, all Takfly's MPO/MTP patch cords offer extensive customization options to suit specific applications. Fiber counts, connector types (MPO or MTP, male or female), fiber modes (single-mode or multimode), cable lengths, jacket types (LSZH, OFNR, OFNP, PVC), connector polarity and so on, are among the parameters that can be tailored to meet the unique requirements of your network or data center.
