1×128 High Port Count PLC Splitter Rack Mount Patch Panel Ultra High Density FTTX Distribution
Λεπτομέρειες:
| Τόπος καταγωγής: | Guangdong, |
| Μάρκα: | TAKFLY |
| Πιστοποίηση: | CE,ROHS,REACH,ISO9001,ISO14001 |
| Αριθμό μοντέλου: | QSFP28-4SFP28-xxx |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 1 Pices |
|---|---|
| Τιμή: | US$17.66 ~ US$70.63/PC |
| Συσκευασία λεπτομέρειες: | σπαθί + κουτί + κουτί |
| Χρόνος παράδοσης: | 3-7 εργάσιμες |
| Όροι πληρωμής: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
|
Λεπτομερής ενημέρωση |
|||
| Επισημαίνω: | 128 port PLC splitter rack mount,high density FTTX distribution panel,fiber optic PLC splitter patch panel |
||
|---|---|---|---|
Περιγραφή προϊόντων

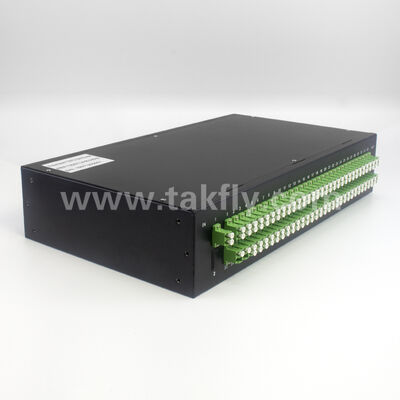

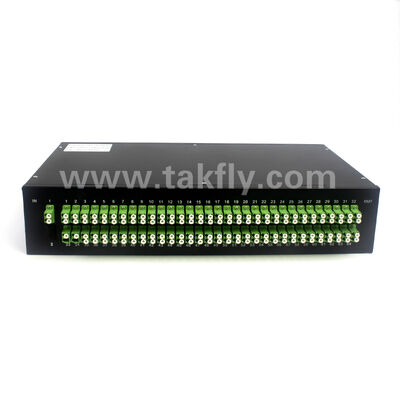

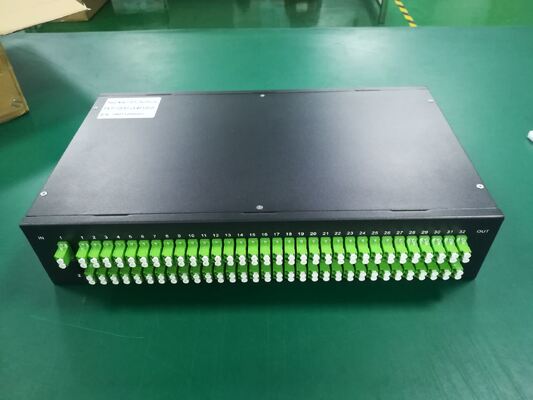

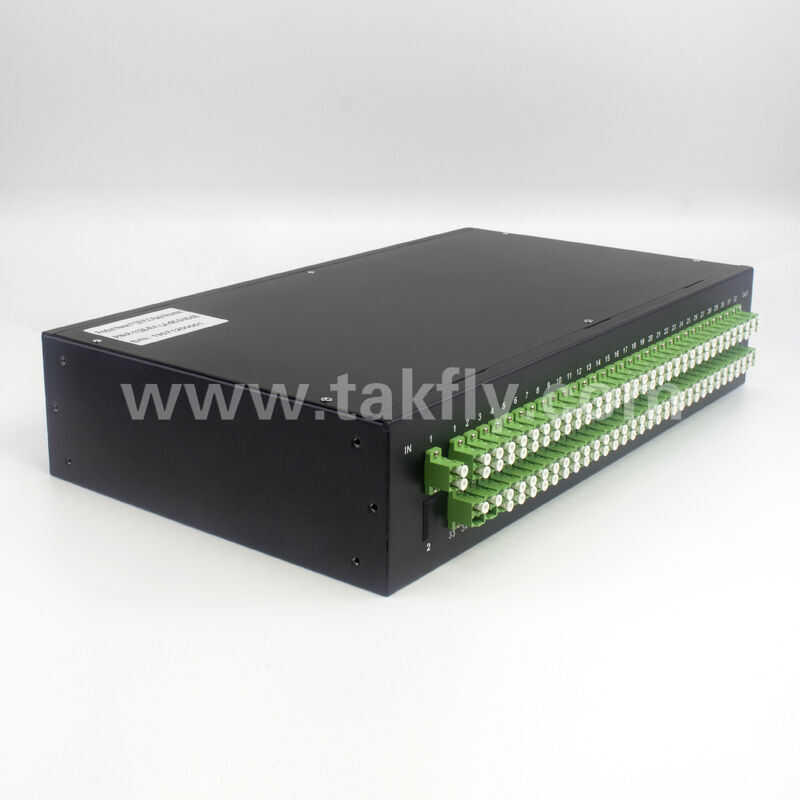

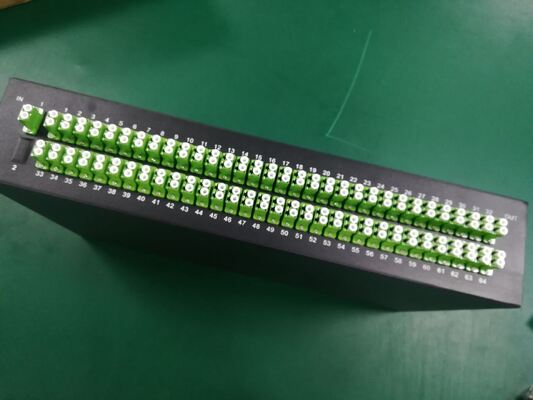

1×128 High Port Count PLC Splitter Rack Mount Patch Panel
Product Name: 1×128 PLC Rack Mount Splitter Patch Panel
Part Number: P-1128-RF-LA-Φ0.9-05-05
Configuration: 1 Input × 128 Outputs
Part Number: P-1128-RF-LA-Φ0.9-05-05
Configuration: 1 Input × 128 Outputs
This rack-mounted PLC splitter panel integrates a 1×128 planar lightwave circuit splitter with a front patch panel. The unit features a standard 19-inch rack-mount enclosure (typically 4U or 5U height depending on port density). Input fiber uses connector adapters (such as LC or SC), while the 128 output fibers terminate on front adapters with 0.9mm pigtails or panel connectors. Designed for FTTH/FTTX central offices, headends, or distribution frame applications, this solution is ideal for distributing single optical signals to multiple users.
Typical Performance Specifications
| Parameter | Value |
|---|---|
| Operating Wavelength | 1260~1650 nm |
| Insertion Loss (Max) | ≤23.0 dB (Typical ≤21.5 dB) |
| Uniformity (Max) | ≤2.5 dB |
| Polarization Dependent Loss | ≤0.5 dB |
| Return Loss | ≥55 dB (Connector) |
| Directivity | ≥55 dB |
| Operating Temperature | -40℃ ~ +85℃ |
| Storage Temperature | -40℃ ~ +85℃ |
| Fiber Type | Input: 2.0mm or 3.0mm; Output: 0.9mm pigtail |
| Connector Type (Input/Output) | SC/APC, SC/UPC, LC/UPC or as specified |
Mechanical Characteristics
- Standard 19-inch rack mounting with pre-terminated output connectors
- Removable front panel for easy cleaning and inspection
- Clear port labeling from 1 to 128
- Optional splice tray or fan-out kit for fiber management
Key Features
- Broadband operating wavelength
- Low insertion loss
- Low polarization dependent loss (PDL)
- Compact design
- Excellent channel-to-channel uniformity
- High reliability and stability
Applications
- Telecommunication networks
- PON systems
- FTTH (Fiber to the Home)
- CATV systems
- Video transmission
Technical Specifications
Performance Parameters
| Parameter | Value |
|---|---|
| Operating Wavelength (nm) | 1260 ~ 1650 |
| Fiber Type | ITU-T G657A1, G657A2 and G.652D |
| Max Temperature Stability (dB) | 0.5 (Typical 0.3) |
| Operating Temperature (°C) | -40 ~ +85 |
| Storage Temperature (°C) | -40 ~ +85 |
1×N Splitter Performance
| Type | 1×2 | 1×4 | 1×8 | 1×16 | 1×32 | 1×64 |
|---|---|---|---|---|---|---|
| Max Insertion Loss (dB) | 3.9 | 7.2 | 10.3 | 13.5 | 16.8 | 20.3 |
| Max Uniformity (dB) | 0.8 | 0.8 | 0.8 | 1.0 | 1.5 | 2.0 |
| Max PDL (dB) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
2×N Splitter Performance
| Type | 2×2 | 2×4 | 2×8 | 2×16 | 2×32 | 2×64 |
|---|---|---|---|---|---|---|
| Max Insertion Loss (dB) | 4.2 | 7.5 | 10.6 | 13.9 | 17.2 | 20.8 |
| Max Uniformity (dB) | 0.8 | 1.0 | 1.2 | 1.5 | 1.8 | 2.0 |
| Max PDL (dB) | 0.2 | 0.3 | 0.3 | 0.3 | 0.3 | 0.5 |
Note: All measurements taken at room temperature, excluding connectors. Minimum return loss for all types: 55 dB.
Frequently Asked Questions
Product FAQs
Q1: What is the purpose of a 1×128 PLC splitter?
A1: It divides one input optical signal into 128 equal-power output signals. Commonly used in large-scale FTTH/PON networks (single OLT port serving up to 128 users) and CATV optical distribution systems.
Q2: What is the typical insertion loss for a 1×128 splitter?
A2: Theoretical loss is approximately 21.0 dB. Including additional loss and connector loss, total insertion loss is ≤23.0 dB (typical), with maximum ≤26.0 dB according to industry standards.
Q3: Can this splitter be used in reverse?
A3: Yes, PLC splitters are passive reciprocal devices. They can combine 128 input signals into one output fiber, but note that combined loss will be high (≥21 dB) and reverse reflections must be controlled.
Q4: What connector types are available for the output panel?
A4: Standard options include SC/APC (most common for FTTH), SC/UPC, LC/UPC, or FC/APC. Contact us to confirm specific connector interfaces for your requirements.
Q5: What rack height (U) does this panel require?
A5: Rack height depends on design and port density. 1×128 splitters typically come in 2U, 3U, or 4U heights. Contact us for exact dimensions of this specific model.
Q6: How temperature stable is the splitter in outdoor cabinets?
A6: The device operates from -40℃ to +85℃, making it suitable for outdoor cabinets, headend rooms, or non-temperature-controlled central offices.
Q7: How many splitter modules are inside? Is it cascaded 1×16 or 1×32 modules?
A7: 1×128 splitters can be implemented with a single high-uniformity PLC chip or by cascading smaller modules. Contact our sales team for specific internal configuration details.
Q8: What is the warranty period?
A8: Standard warranty is 1 year, covering non-human defects with free repair for manufacturing defects.
Q9: Can I get a sample before bulk ordering?
A9: Yes, we provide samples. Please specify your connector and fiber length requirements.
Q10: How to clean output connectors on high-density panels?
A10: Use one-click cleaners or cassette cleaners with appropriate adapters (SC or LC). The front panel design allows individual cleaning without disturbing adjacent fibers.
