12F MPO -6x LC APC DX Uniboot SM Patchcord
Λεπτομέρειες:
| Τόπος καταγωγής: | Shenzhen, Κίνα |
| Μάρκα: | Takfly/OEM |
| Πιστοποίηση: | CE, ROHS, REACH, ISO9001, ISO14001 |
| Αριθμό μοντέλου: | MPO/MTP/LC |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 1 ΤΕΜ |
|---|---|
| Τιμή: | Can be negotiated |
| Συσκευασία λεπτομέρειες: | Κιβώτιο χαρτοκιβωτίων PP bag+ |
| Χρόνος παράδοσης: | 3-15 εργάσιμες ημέρες |
| Όροι πληρωμής: | T/T, Western Union, MoneyGram, Paypal |
| Δυνατότητα προσφοράς: | 50000 τεμάχια/ μήνα |
|
Λεπτομερής ενημέρωση |
|||
| Τύπος σύνδεσης: | MPO-LC | Αριθμός φυτικών ινών: | 12 |
|---|---|---|---|
| Πόλωση: | A/B/C/ΕΙΔΙΚΟ (Προσαρμοσμένο) | Τύπος λειτουργίας: | SM (G652, G655, G657) |
| Χρώμα καλωδίου: | Κανονική/προσαρμοσμένη | Απώλεια επιστροφής: | UPC SM：40dB APC SM:60DB |
| Μήκος κύματος δοκιμής (nm): | SM:1310/1550 | Θερμοκρασία λειτουργίας: | -20℃~70℃ |
| Θερμοκρασία αποθήκευσης: | -40 ℃ ~ 80 ℃ | Εξωτερικό υλικό θήκης: | PVC, LSZH |
| Μήκος: | Προσαρμοσμένο | ||
| Επισημαίνω: | 12F MPO LC APC patchcord,MPO LC Uniboot SM fiber,MPO DX Uniboot patchcord |
||
Περιγραφή προϊόντων

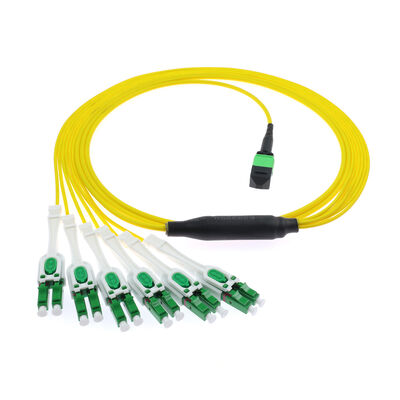

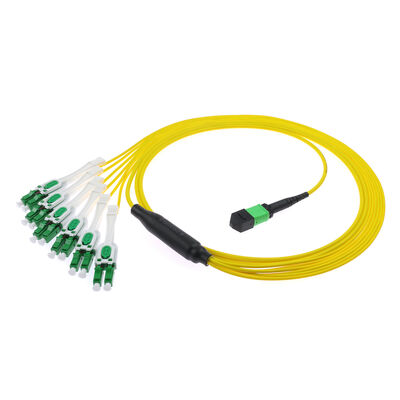

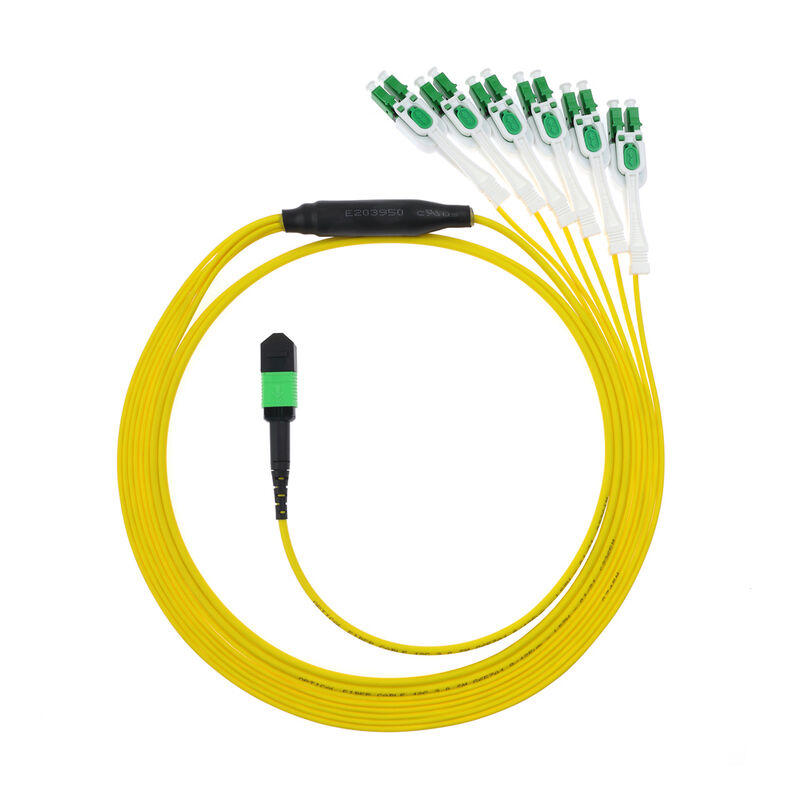

12F MPO -6x LC APC DX Uniboot SM Patchcord
This 12-fiber MPO to 6x LC APC DX Uniboot single mode patchcord provides high-density connectivity for demanding optical network applications.
Applications
- Asynchronous Transmission Mode (ATM) networks
- Gigabit Ethernet
- Active devices and transceiver interfaces
- CATV, video, and multimedia systems
- Premise installations
- Telecommunication networks
- Parallel optical interconnect between PC cards and patch panels
- Interconnection for optical/electrical (O/E) modules
- Industrial applications
- Optical switch interframe connections
Key Features
- Precision-molded MT ferrule
- Precision guide pins for accurate alignment
- Compact design - supports up to 4, 8, 12, or 24 fibers
- Compliant with IEC 61754-7
- Compliant with EIA/TIA-604-5
Specifications
Polarity Configuration
Selection Guide
- Connector type: MPO / MTP
- Mode type: single mode (UPC and APC) / multi mode (PC)
- Cable diameter: 0.9 / 2.0 / 3.0 mm (custom diameters available)
- Coating material: PVC / LSZH
- Fiber count: simplex / duplex / 8 cores / 12 cores / 24 cores / 48 cores / 96 cores
- Cable type: G652D / G657A1 / G657A2 / G655 / OM1 / OM2 / OM3-150 / OM3-300 / OM4 / OM5
- Patch cord length: customized to requirements
- MPO/MTP connector type: specify brand and method (A type / B type / C type), male or female
Why Choose TAKFLY?
Core Advantages
- Founded in 2000, located in Shenzhen (neighboring Hong Kong)
- FTTH, Data Center Solutions, one-stop fiber optic components supply
- ISO 9001/14001/RoHS/CE/FCC certified quality
- Factory-direct pricing with strict quality control
- Customized production and on-time delivery
- 25 years' expertise with 30 engineers' R&D support
- Trial and small orders accepted
- Main customers: Vodafone, Orange, Telefónica, Movistar, Ericsson, etc.
- Worldwide exhibitions: OFC, CommunicAsia, ECOC, Netcom, Cable Tech, Network X, SVIAZ ICT, AFRICACOM, CAIRO ICT, etc.
Premium Services
- 3-7 days for samples; 2-3 weeks for bulk orders (urgent orders supported)
- 100% pre-shipment testing
- Prompt response and full after-sales support
Frequently Asked Questions
Are you a manufacturer?
Yes, we are a manufacturer, FTTH solution and data center total solution provider in Shenzhen, China, established in 2000.
What's your MOQ?
MOQ could be 1 piece, but larger quantities receive more competitive pricing.
Can you quote FOB price?
Yes. We can deliver by air, DHL, TNT, UPS, FEDEX, etc. For large quantities we deliver by sea. We provide quotes with freight and lead time after receiving detailed requirements with quantity.
How is your quality?
Our production follows IEC and European standards. We are CE, ISO, RoHS, CPR, and ANATEL certified. All products are 100% tested before delivery.
What's your lead time?
It depends on quantity and products. For fiber optic patch cords, lead time is 2-3 working days for orders up to 5000 pieces. We keep regular products in stock and accommodate urgent orders.
What's your warranty?
We offer 1-year warranty for patch cords from delivery date for non-artificial damage. For artificial damage, we provide free repair with customer responsible for freight.
What's your packing?
International export standard packaging. Custom logo printing available upon request before quotation.
Can you offer OEM/ODM?
Yes, all products accept OEM/ODM. We can sign Confidentiality Agreements.
How can I order?
1. Send email or inquiry with product name, specification, and quantity. Provide receiving address for FOB, CIF, CFR pricing.
2. We provide quotation with lead time.
3. After confirmation, we send Proforma Invoice with bank account details.
4. Production begins after payment receipt.
5. Confirm consignee details before delivery.
6. Tracking number provided after shipment.
2. We provide quotation with lead time.
3. After confirmation, we send Proforma Invoice with bank account details.
4. Production begins after payment receipt.
5. Confirm consignee details before delivery.
6. Tracking number provided after shipment.
What are your payment terms?
T/T, Western Union, PayPal, MoneyGram for immediate payment. For large amounts: 50% deposit, 50% balance before delivery.
