MPO/MTP Single-mode (SM) Patch Cord – 4C to 72C, High-Density Multi-fiber Trunk for 40G/100G/400G Networks
Λεπτομέρειες:
| Τόπος καταγωγής: | ShenZhen & ZhongShan Κίνα |
| Μάρκα: | DF/OEM/Nuetral |
| Πιστοποίηση: | CE/ROHS/CPR EN50575/ISO9001 /ISO14001 |
| Αριθμό μοντέλου: | MPO/MTP |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 1 |
|---|---|
| Τιμή: | Can be negotiation |
| Συσκευασία λεπτομέρειες: | Χαρτοκιβώτιο |
| Χρόνος παράδοσης: | 5-9 Οι εργασίες εξαρτώνται από τον ΠΟΣΟΤΗΤΑ |
| Όροι πληρωμής: | T/T, Paypal |
| Δυνατότητα προσφοράς: | 5000 ΤΕΜ/ΕΒΔΟΜΑΔΑ |
|
Λεπτομερής ενημέρωση |
|||
| Επισημαίνω: | MPO MTP single-mode patch cord,high-density multi-fiber trunk,40G 100G 400G network patch cord |
||
|---|---|---|---|
Περιγραφή προϊόντων

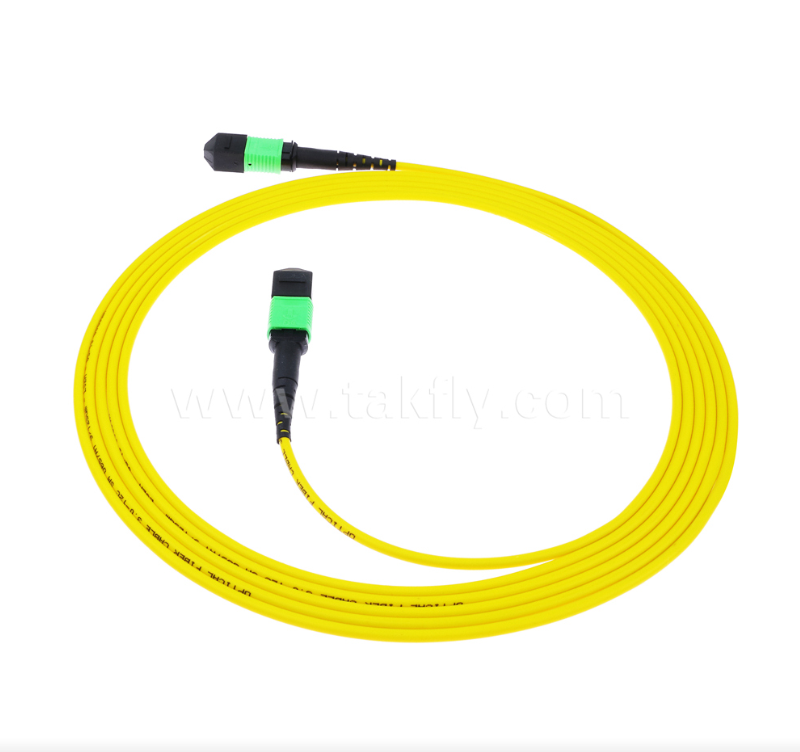

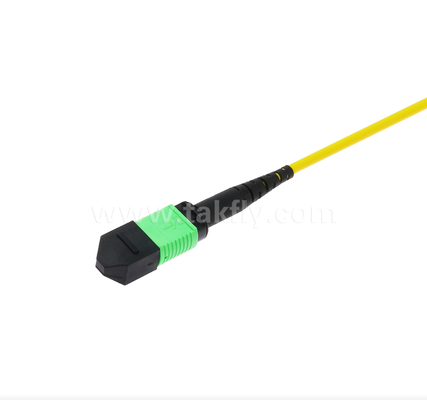

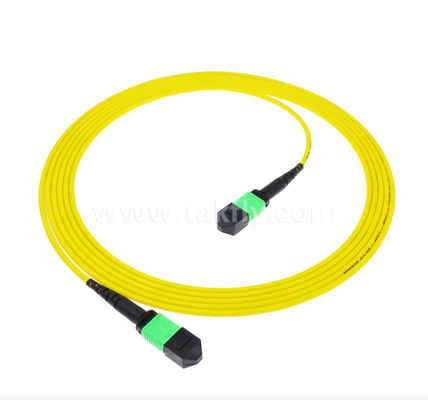

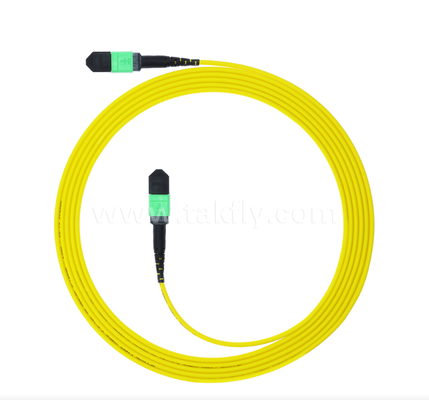

MPO/MTP Single-mode (SM) Patch Cord – 4C to 72C
High-density multi-fiber trunk solution for 40G/100G/400G networks
Product Overview
MPO/MTP fiber optic patch cords provide active connections between optical network equipment, enabling simple, convenient, and fast operation. These essential passive components are indispensable for modern optical network infrastructure.
Selected High Quality Ferrule
Available with high-quality ferrules and professional polishing technology for precise optical endface matching, ensuring stable transmission and efficient connection.
100% Factory Tested
TAKFLY MPO/MTP patch cords undergo comprehensive 100% testing, ensuring compliance with product standards and meeting user demands.
Multiple Types Available
TAKFLY provides a full range of MPO/MTP patch cords with complete customization options.
Applications
- Hyperscale data centers (40G/100G/400G architectures)
- Telecom core and metro networks
- 5G backhaul and front-haul (C-RAN)
- High-performance computing (AI/ML clusters)
- Optical transceivers (QSFP/QSFP-DD/OSFP)
- High-density patching areas
- Data center interconnect (DCI)
- FTTA / wireless infrastructure
Key Features
- OS2 single-mode bend-insensitive fiber for long-distance transmission
- Precision MT ferrule with high-precision guide pins for exact alignment
- Low insertion loss: ≤0.35dB (MPO/MTP)
- High return loss: ≥50dB (MPO/MTP)
- Fiber counts: 4C / 8C / 12C / 16C / 24C / 48C / 72C
- Polarity options: Type A / Type B / Type C
- Compliant with IEC 61754-7 and EIA/TIA-604-5 (FOCIS-5)
- 100% factory tested (IL/RL/end-face inspection)
- Customizable: fiber count, length, jacket (LSZH/PVC/Plenum), connector type
Technical Specifications
Why Choose TAKFLY?
26 Years of Manufacturing Experience in Fiber Optic Products
Experienced Assembly Team
More than 80 assembly workers with 6+ years of experience
Strong R&D Capability
More than 10 R&D engineers
Advanced Production Equipment
16 sets of German imported injection machines and 16 production lines
Comprehensive Testing Facilities
More than 30 sets of testing instruments including OTDR, ILD, VFL, RL, IL, tension strength testers, crush resistance testers, power meter testers, and light checkers
OEM Branding Accepted
Custom logo/branding available
Quality Control Process
- Incoming inspection: Spot check of raw materials before production
- In-process inspection: Full inspection at every individual process completion
- Pre-packaging inspection: Full inspection of finished products before packing
- Pre-shipping inspection: Spot check before shipping
Industry Participation
Source Electronics Exhibition, OFC, FOCC, ConnecAsia, NFTCOM, AFRICACOM, SMART ICT, Contelem, China
Delivery Information
- Samples: 1-3 working days
- Mass production orders: 3-7 working days
- Packaging: Plastic bag, carton, and pallet options available according to your requirements
