MPO/MTP-LC Uniboot Breakout Patch Cord – Dual LC in One Boot, Polarity Reversible, Space-Saving Design
Λεπτομέρειες:
| Τόπος καταγωγής: | ShenZhen & ZhongShan Κίνα |
| Μάρκα: | DF/OEM/Nuetral |
| Πιστοποίηση: | CE/ROHS/CPR EN50575/ISO9001 /ISO14001 |
| Αριθμό μοντέλου: | MPO/MTP-LC Uniboot |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 1 |
|---|---|
| Τιμή: | Can be negotiation |
| Συσκευασία λεπτομέρειες: | Χαρτοκιβώτιο |
| Χρόνος παράδοσης: | 5-9 Οι εργασίες εξαρτώνται από τον ΠΟΣΟΤΗΤΑ |
| Όροι πληρωμής: | T/T, Paypal |
| Δυνατότητα προσφοράς: | 3000 τμχ/εβδομάδα |
|
Λεπτομερής ενημέρωση |
|||
| Επισημαίνω: | MPO MTP breakout patch cord,Uniboot LC reversible polarity cable,Space-saving dual LC fiber patch |
||
|---|---|---|---|
Περιγραφή προϊόντων
MPO/MTP-LC Uniboot Breakout Patch Cord
Dual LC in One Boot, Polarity Reversible, Space-Saving Design
Product Overview

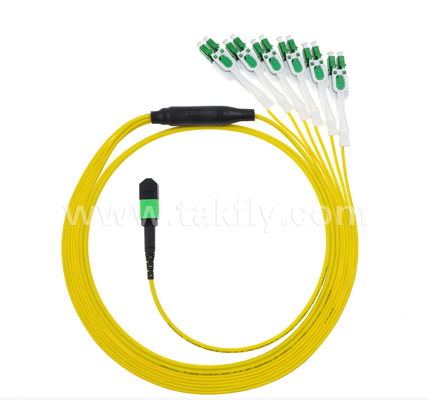

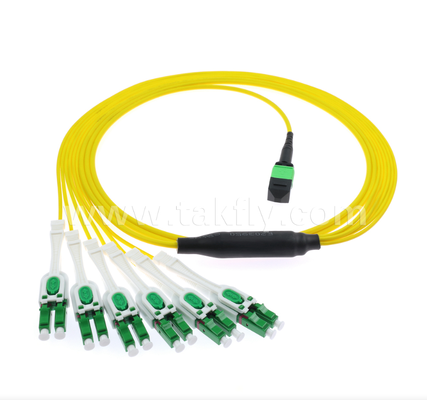

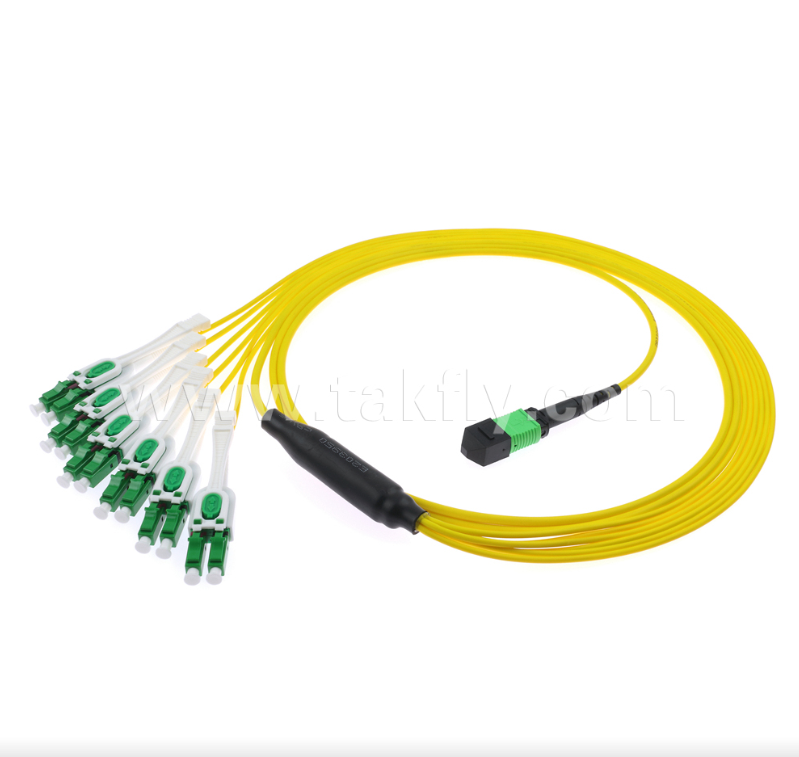

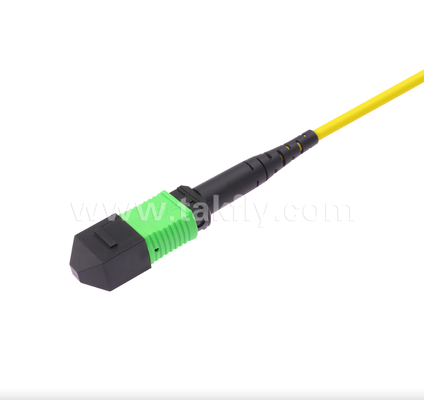

The MPO/MTP-LC Uniboot breakout patch cord is a high-performance, space-saving interconnect solution designed for high-density data centers, enterprise networks, and 40G/100G backbone architectures. It features a multi-fiber MPO/MTP connector on one end, breaking out to individual LC duplex connectors on the other end, enabling seamless conversion from high-density trunk cabling to standard equipment interfaces.
Key Features
- Uniboot LC design - dual LC in one boot, 50% space saving vs. standard duplex LC
- Polarity reversible in the field - no tools required for Type A/B/C change
- OS2 bend-insensitive single-mode fiber - stable long-distance transmission
- Multi-core main cable - reduces tangling and simplifies cable management
- Customizable fiber count (4/8/12/24F), length, breakout length, polarity, jacket
- Compliant with IEC 61754-7 and TIA/EIA-604-5 (FOCIS-5)
- 100% factory tested (IL/RL/end-face inspection)
Space-Saving Design

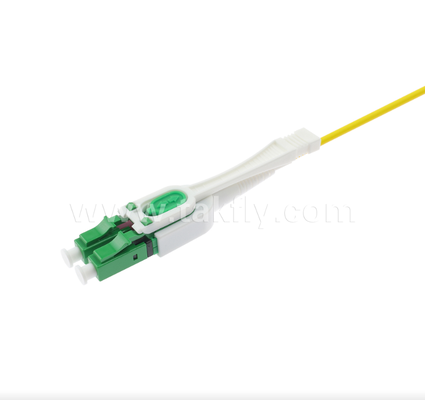

LC uniboot connector features one push-pull tab, one tube, two cores and single boot, making it compact and space-saving (can save 50% cabling space) and conducive to reasonable heat dissipation for greater efficiency in cabling systems. Allows for on-site polarity change of optical connector with easy opening of outer housing without any tools.
Premium Quality Ferrules
Available with high quality ferrule, professional polishing technology, and precise matching for optical endface to achieve stable transmission and efficient connection.
Rigorous Quality Assurance
TAKFLY MPO/MTP-LC breakout patch cords are fully 100% tested, compliant with product standards, and designed to meet user demands.
Customization Options
TAKFLY provides a full range of MPO/MTP-LC breakout patch cords with customization options available.
Applications
- Data centers (40G/100G/400G architectures)
- Enterprise networks & campus backbones
- Optical transceivers (QSFP/QSFP-DD/OSFP)
- High-density patching areas
- Storage area networks (SAN)
- Breakout assemblies & fan-out harnesses
- Premise installations
- 40G/100G equipment interconnect
Why Choose TAKFLY?
26 Years of Manufacturing Experience in Fiber Optic Products
Company Capabilities
Experienced Assembly Team: More than 80 assembly workers with 6+ years of experience
Strong R&D Capability: More than 10 R&D engineers
Advanced Production Equipment: 16 sets of German imported injection machines and 16 production lines
Comprehensive Testing Facilities: More than 30 sets of testing instruments, including OTDR, ILD, VFL, RL, IL, tension strength testers, crush resistance testers, power meter testers, light checkers, etc.
OEM Branding Accepted: Custom logo/branding available
Quality Control Process
| Stage | Process |
|---|---|
| Incoming Inspection | Spot check of raw materials before production |
| In-Process Inspection | Full inspection at every individual process completion |
| Pre-Packaging Inspection | Full inspection of finished products before packing |
| Pre-Shipping Inspection | Spot check before shipping |
Industry Participation
Source Electronics Exhibition, OFC, FOCC, ConnecAsia, NFTCOM, AFRICACOM, SMART ICT, Contelem, China
Delivery Information
| Service | Timeline |
|---|---|
| Samples | 1-3 working days |
| Mass Production Orders | 3-7 working days |
| Packaging | Plastic bag, carton, and pallet options available according to your requirements |
