MPO/MTP-LC Uniboot Breakout Patch Cord – Dual LC in One Boot, Polarity Reversible, 50% Space Saving for 100G/400G Networks
Λεπτομέρειες:
| Τόπος καταγωγής: | ShenZhen & ZhongShan Κίνα |
| Μάρκα: | DF/OEM/Nuetral |
| Πιστοποίηση: | CE/ROHS/CPR EN50575/ISO9001 /ISO14001 |
| Αριθμό μοντέλου: | MPO/MTP-LC Uniboot OM4 |
Πληρωμής & Αποστολής Όροι:
| Ποσότητα παραγγελίας min: | 1 |
|---|---|
| Τιμή: | Can be negotiation |
| Συσκευασία λεπτομέρειες: | Χαρτοκιβώτιο |
| Χρόνος παράδοσης: | 5-9 Οι εργασίες εξαρτώνται από τον ΠΟΣΟΤΗΤΑ |
| Όροι πληρωμής: | T/T, Paypal |
| Δυνατότητα προσφοράς: | 3000 τμχ/εβδομάδα |
|
Λεπτομερής ενημέρωση |
|||
| Επισημαίνω: | MPO MTP uniboot breakout patch cord,dual LC uniboot fiber cable,polarity reversible MTP patch cord |
||
|---|---|---|---|
Περιγραφή προϊόντων

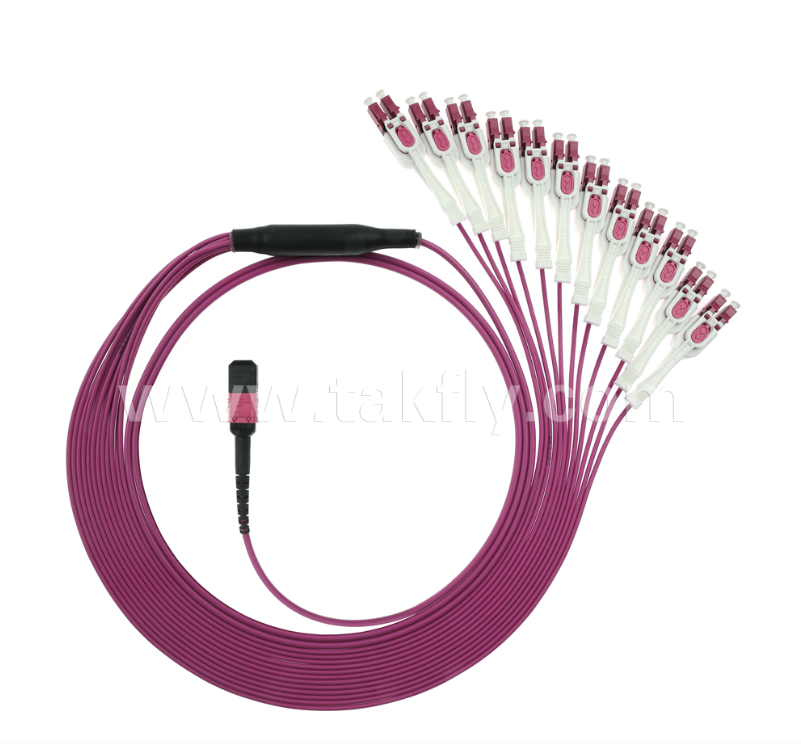

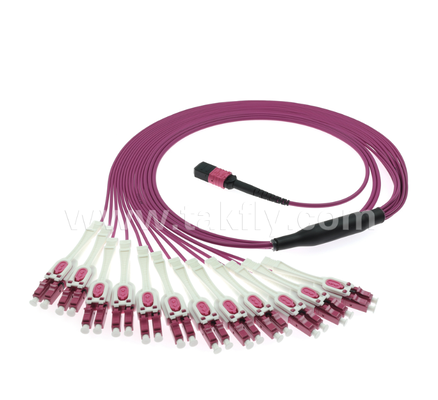

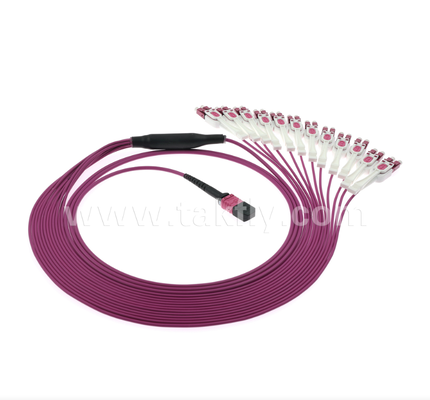

MPO/MTP-LC Uniboot Breakout Patch Cord
Dual LC in One Boot, Polarity Reversible, 50% Space Saving for 100G/400G Networks
Product Overview

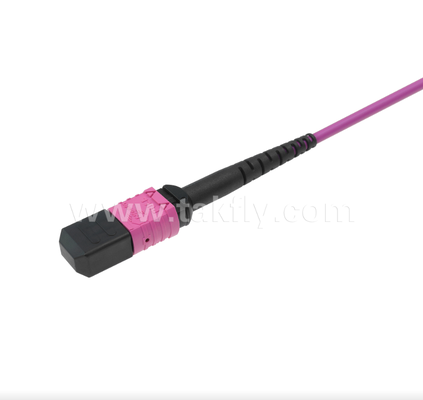

The MPO/MTP-LC Uniboot breakout patch cord is a high-performance, space-saving interconnect solution designed for high-density data centers, enterprise networks, and 100G/400G backbone architectures. It features a multi-fiber MPO/MTP connector on one end, breaking out to individual LC duplex connectors on the other end, enabling seamless conversion from high-density trunk cabling to standard equipment interfaces.
Key Design Features
Changeable Polarity, Simple Operation

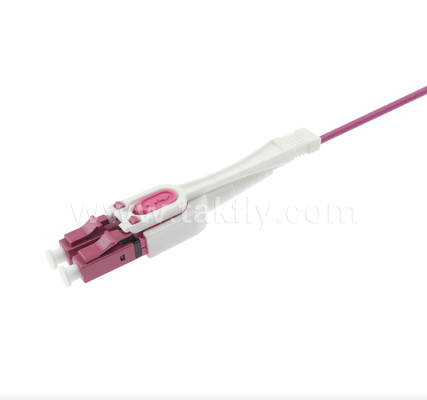

LC uniboot connector features one push-pull tab, one tube, two cores and single boot, making it compact and space-saving (50% cabling space reduction) and conducive to efficient heat dissipation in cabling systems.
Allows for on-site polarity change of optical connector with easy opening of outer housing without any tools.
Selected High Quality Ferrule
Quality Assurance
High Quality, 100% Testing
TAKFLY MPO/MTP-LC breakout patch cords are fully 100% tested, compliant with product standards and designed to meet user demands.
Customization Options
TAKFLY provides a full range of MPO/MTP-LC breakout patch cords with multiple types available and custom solutions.
Technical Features
- Uniboot LC design - dual LC in one boot, 50% space saving vs. standard duplex LC
- Polarity reversible in the field - no tools required for Type A/B/C change
- OM4 laser-optimized 50/125μm multimode fiber - supports 10G up to 550m, 100G up to 150m, 400G up to 100m
- Multi-core main cable - reduces tangling and simplifies cable management
- Customizable fiber count (4/8/12/24F), length, breakout length, polarity, jacket
- Compliant with IEC 61754-7 and TIA/EIA-604-5 (FOCIS-5)
- 100% factory tested (IL/RL/end-face inspection)
Applications
- Hyperscale data centers (100G/400G architectures)
- Enterprise networks & campus backbones
- Optical transceivers (QSFP/QSFP-DD/OSFP)
- High-density patching areas
- Storage area networks (SAN)
- Breakout assemblies & fan-out harnesses
- High-performance computing (AI/ML clusters)
- 100G/400G equipment interconnect
Why Choose TAKFLY?
26 Years of Manufacturing Experience in Fiber Optic Products
Experienced Assembly Team
More than 80 assembly workers with 6+ years of experience
Strong R&D Capability
More than 10 R&D engineers
Advanced Production Equipment
16 sets of German imported injection machines and 16 production lines
Comprehensive Testing Facilities
More than 30 sets of testing instruments including OTDR, ILD, VFL, RL, IL, tension strength testers, crush resistance testers, power meter testers, light checkers, etc.
OEM Branding Accepted
Custom logo/branding available
Quality Control Process
| Incoming inspection | Spot check of raw materials before production |
| In-process inspection | Full inspection at every individual process completion |
| Pre-packaging inspection | Full inspection of finished products before packing |
| Pre-shipping inspection | Spot check before shipping |
Industry Participation
Exhibition Participation: Source Electronics Exhibition, etc.
Certifications & Industry Events: OFC, FOCC, ConnecAsia, NFTCOM, AFRICACOM, SMART ICT, Contelem, China.
Delivery Information
| Samples | 1-3 working days |
| Mass production orders | 3-7 working days |
| Packaging | Plastic bag, carton, and pallet options available according to your requirements |
