FTTH High Density MPO/MTP Cassette Management Fiber Optic Patch Panel
Advanced data center and network solution designed for high-density fiber optic connectivity and management.
Product Overview
Takfly series rack-mounted patch panel efficiently manages and houses easy-plug MTP/MPO to LC fiber cassette modules, enabling seamless connection of plug-and-play pre-terminated high-density MTP/MPO fiber cabling systems. This solution enhances network availability and is particularly suitable for SAN, LAN, and Data Center applications.
Each easy-plug MTP/MPO to LC cassette accommodates 12/24-fiber MTP/MPO based fiber assemblies and comes pre-loaded with LC adapters in various fiber modes to meet diverse requirements.
Applications
- Optical fiber communication dense wiring systems between buildings
- WAA (Wireless Access Applications)
- LAN (Local Area Networks)
- CATV (Cable Television Systems)
- Data center rooms in commercial buildings
- Telecommunication base stations
- Optical link interconnection in optical active equipment for LAN cabling
- FTTH (Fiber To The Home)
- Data center rooms in industrial areas
Key Features
- Designed for 19-inch rack-mount and cabinet installation with centralized cassette module management
- High-quality aluminum alloy construction with durable electrostatic coating surface
- 1U high-density capacity supporting 96 fibers for LC interface
- Male or Female MPO/MTP connectors with precise PIN and adapter connections
- Modular design featuring plug-in locking structure and clear line sequence identification
- Compact, lightweight, impact-resistant, flame-retardant, and corrosion-resistant construction
- Excellent sealing performance for dust protection and advanced network equipment integration
- Accommodates up to 4 Small/MTP modules in 1U space
- Multiple adapter options available for various configurations
- Compatible with loose tube, distribution, and pre-terminated cables
- ROHS, REACH SvHC, and UL rated for quality assurance
- Fits standard 19" rack systems
Technical Specifications
| U Size | 1U (44.2mm) |
|---|---|
| Number of Ports | 12 (Max 144 core) |
| Width | 482.6mm |
| Depth | 464.9mm |
| Net Weight | 6.8kg |
| Packaged Weight | 8.7kg |
| Packaged Size | 57*56*20cm |
| Material | 1.2mm Cold-rolled steel |
| Material Coating | Powder coating |
| Color | Black |
| Designed in Accordance With | TIA/EIA 568.C, ISO/IEC 11801, EN50173, IEC60304, IEC61754, EN297-1 |
| Compliant to | RoHS, Reach/SVHC |
| U Size | 1U (44mm) | 2U (88mm) | 2U (133mm) |
|---|---|---|---|
| Number of Ports | 4 (Max 96 core) | 8 (Max 192 core) | 12 (Max 288 core) |
| Width | 482.6mm | ||
| Depth | 341.5mm | ||
| Net Weight | 3kgs | 7kg | 9.5kg |
| Packaged Weight | 3.3Kgs | 7.5kg | 10.3kg |
| Material | 1.2mm~1.5mm Cold-rolled steel | ||
| Material Coating | Powder coating | ||
| Color | Black | ||
| Designed in Accordance With | TIA/EIA 568.C, ISO/IEC 11801, EN50173, IEC60304, IEC61754, EN297-1 | ||
| Compliant to | RoHS, Reach/SVHC | ||

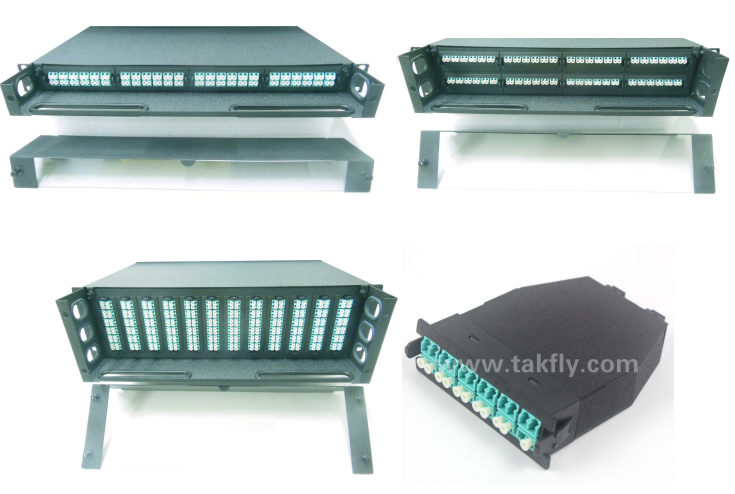

Product Structure
Product Images
Why Choose TAKFLY?
- 26+ years of manufacturing experience in fiber optic products
- 450+ assembly workers with 3+ years of experience
- 10+ R&D Engineers dedicated to innovation
- 16 sets of Germany imported injection machines and 16 production lines
- Comprehensive testing equipment including OTDR, 3D, VFL, IL&RL test instruments, tension strength testers
- OEM branding accepted
- Regular exhibition participation worldwide
Quality Control
- Spot check raw material incoming inspection before production
- Full inspection after every individual process completion
- Full inspection of production half-done stages
- Full inspection of finished products before packing
- Spot check before shipping
Delivery Information
- Samples: 1-3 working days
- Mass production orders: 3-7 working days
- Packaging: Plastic bag, carton and pallet options available
Frequently Asked Questions
Q1: How can I get your catalogue and price list?
A1: Please provide your email or contact information through our website to receive our catalogue and price list.
Q2: Can I negotiate the prices?
A2: Yes, we may consider discounts for multiple container loads of mixed goods.
Q3: How much will the shipping charges be?
A3: Shipping charges depend on shipment size and shipping method. We will provide charges upon request.
Q4: Can I visit you?
A4: Sure, our factory is in Shenzhen, China. Please contact us to schedule an appointment.
Q5: What if there is a quality problem when we receive the goods?
A5: If quality issues arise upon unpacking, please take photos for our reference. Our QC department will investigate and provide the best solutions, and we'll implement improvements for future production.
Q6: What are your packing terms?
A6: Generally, we pack goods in blister boxes and cartons, but we can also accommodate custom packaging requests.
Q7: What are your payment terms?
A7: T/T 30% deposit, 70% balance before delivery. We provide photos of products and packaging before final payment.
Q8: What are your delivery terms?
A8: EXW, FOB, CFR, CIF, DDU
Q9: How about your delivery time?
A9: Generally, 5-7 working days after receiving advance payment. Specific delivery time depends on items and order quantity.
Q10: Can you produce according to samples?
A10: Yes, we can produce based on your samples or technical drawings.
If you're interested in our products or have any questions, feel free to contact us at any time!
